Custom FPC PCB Flexible Circuit Board Flexible PCB Assembly
At FASTPCBA, we specialize in manufacturing quality PCBs for various types of industry. We are a household name in the electronics industry due to our unshakable commitment to manufacturing only quality flexible PCBs. Prior to supplying your PCBs, we make extra effort to check for any errors in design. At FASTPCBA, quality is our watchword.
Custom Flexible PCB
We also specialize in the production of custom Flex PCBs. We understand that every electronic device is unique and will require a custom Flexible PCB. With our experts, we produce quality Flex PCBs that are designed to suit your requirement. FASTPCBA can manufacture any Flex PCB in any industries, from the health industry to the telecommunication industry.
Affordable Prices
Despite the quality of the Flex PCBs we manufacture, our Flex PCBs are affordable. For quality Flex PCBs, we guarantee you the best prices!
| Feature | Capability |
| Quality Grade | Standard IPC 2 |
| Number of Layers | 1 - 8layers |
| Order Quantity | 1pc - 10000+pcs |
| Build Time | 2days - 5weeks |
| Material | DuPont PI, Domestic Shengyi PI |
| Board Size | Min 6*6mm, Max 406*610mm |
| Board Thickness | 0.1mm - 0.8mm |
| Copper Weight (Finished) | 0.5oz - 2.0oz |
| Min Tracing/Spacing | 3mil/3mil |
| Solder Mask Sides | As per the file |
| Solder Mask Color | Green, White, Blue, Black, Red, Yellow |
| Solder-stop coating---Soldermask oil | Green, White, Blue, Black, Red, Yellow |
| Solder-stop coating---Coverlay | PI and PET film |
| Silkscreen Sides | As per the file |
| Silkscreen Color | White, Black, Yellow |
| Surface Finish | HASL - Hot air solder leveling
Lead - free HASL - RoHS
ENIG - RoHS
Immersion Tin - RoHS
OSP - RoHS |
| Min Annular Ring | 4mil |
| Min Drilling Hole Diameter | 8mil |
| Min. hole size---Drilling (PTH) | 0.2mil |
| Min. hole size---Punching (NPTH) | 0.5mil |
| Tolerance of dimension | ±0.05mm |
| Other Techniques | Peelable solder mask
Gold fingers
Stiffener (only for PI/FR4 substrate) |

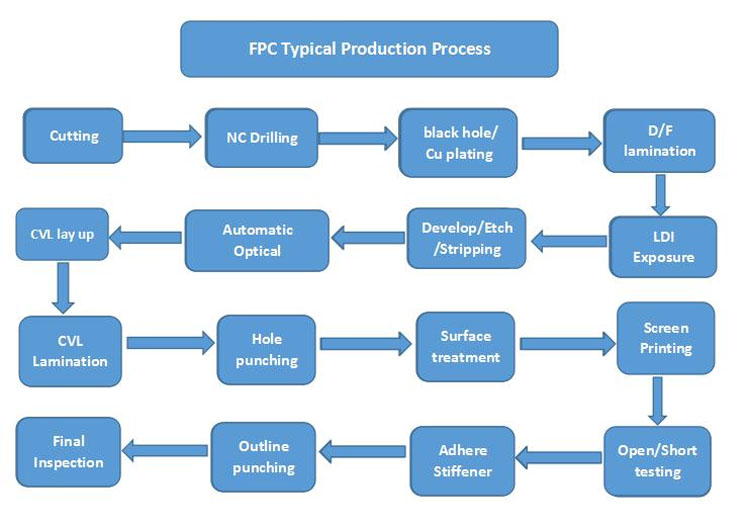

How to make flexible PCB board ?
Making Flexible PCB flow chart from multilayer flexible pcb factory, want to know more, welcoem to contact us.
FASTPCBA is a professional PCB manufacturer in China, Shenzhen. With 20 years of development, FASPCBA turns into a first class manufacturer of HDI PCB, with production capability 35,000 square meters. FASTPCBA is providing high quality bare PCB and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all over the world, Our main market is Europe, north USA, Australia, South America, and Asia.
Our service:
* PCB Manufacturing (Rigid PCB, Flexible PCB, Rigid-flex PCB);
* Components Sourcing;
* PCB Assembly;
* Testing.
Our advantages:
* One-Stop Solution;
* Favorable offer;
* Qualified technical service;
* Own factory, No MOQ;
* ISO 9001, ISO 14001, ISO 13485, IATF 16949 Certificates.
Contact Us for a Quotation or For More Information
You can submit a custom request and get a price quote. Also for any additional information, do not hesitate to contact us. We’ll respond immediately!
