Factory Custom Multilayer PCB Production Electrical OEM PCBA Assembly

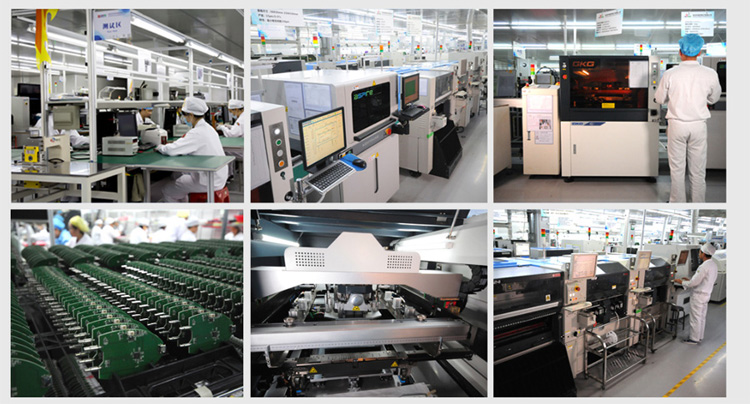

FASTPCBA Co., Ltd. is a professional PCB manufacturer in China, Shenzhen. With 20 years of development, FASPCBA turns into a first class manufacturer of HDI PCB, with production capability 35,000 square meters. FASTPCBA is providing high quality bare PCB and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all over the world, Our main market is Europe, north USA, Australia, South America, and Asia.
FASTPCBA has been selected as the “excellent partner of the year” by numerous well-known enterprises, and won many domestic and authorized certifications at home and abroad, such as Chinese high-tech project certification, ISO9001, ISO14001, ISO13485, IATF16949 quality management system standard and customized CE, UL, FCC and other product certifications according to the customer's requirements.

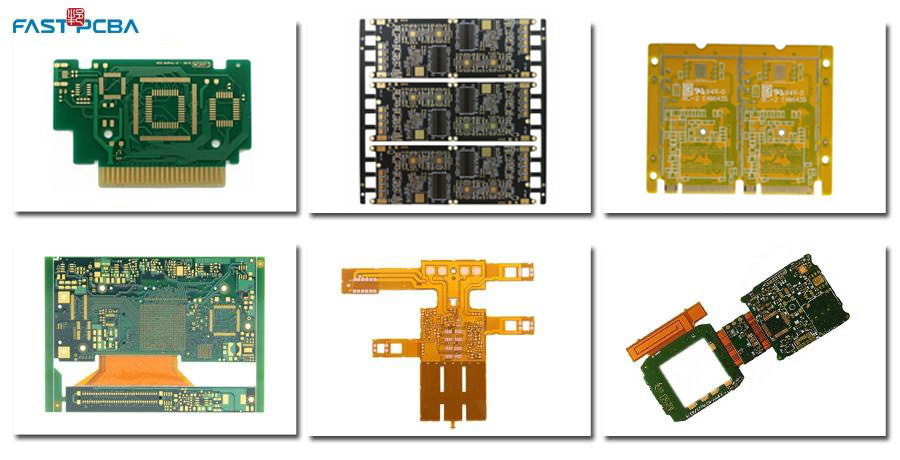

PCB Manufacturing Type:
* Rigid PCBs (1 - 48 Layers)
* Flexible PCBs
* Rigid-flex PCBs
* HDI PCBs
* Gold-Plated PCBs
* High Frequency PCBs, etc.
if there's a type of printed circuit board that can be assembled, we almost surely do it.
| Article | Description | Capability |
| Laminate Materials | FR4, high TG FR4, high frequency, alum, FPC |
| Board Cutting | Number of layers | 1-48 |
Min.thickness for inner layers
(Cu thickness are excluded) | 0.003”(0.07mm) |
| Board Thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” |
| 4layer:0.01±0.008” |
| 8layer:0.01±0.008” |
| Bow and twist | no more than 7/1000 |
| Copper Weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) |
| PTH hole tolerance | ±0.002″(0.005mm) |
| NPTH hole tolerance | ±0.002″(0.005mm) |
| Solder Mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) |
| Thickness | (0.012*0.017mm) |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) |
| Component Sourcing | Yes |
| Tolerance of PCB | ±5% |
| Max Size of Finish Board | 700*460mm |
| MOQ | NO MOQ (1pcs) |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… |
| PCB Outline | Square,circle,irregular(with jigs) |
| Package | QFN,BGA,SSOP,PLCC,LGA |
| Sub-assembly | Plastic,metal,screen |
| Min Line/Space | 0.075/0.075mm |
OEM PCBA Services:
* Prototype PCB Assembly
* Low-Volume, High Mix PCB Assembly
* High-Volume PCB Assembly
* Consigned & Partial PCB Assembly
* Full Turnkey PCB Assembly
* Cable & Wire Harness Assembly
* Box Build Assembly Services
FASTPCBA'S PCB and PCBA Application:
Millions of circuit boards are produced here every year, which provides superior service for automotive electronics, medical electronics, power communications, industrial automation, intelligent home and other industries around the world. We will continue to improve our quality and service; customer satisfaction and development of science and technology are our eternal motivation.
Contact Us for a Quotation or For More Information
You can submit a custom request and get a price quote. Also for any additional information, do not hesitate to contact us. We’ll respond immediately!
