OEM PCB Manufacture Turnkey PCBA Protype Assembly Company
There is really only one company to contact when you have PCB assembly needs, and that's FASTPCBA. Printed Circuit Board Assembly (PCBA) is one of our core services FASTPCBA. From multi-layered to flexible printed circuit boards, FASTPCBA is your one-stop shop.We provide our customers with PCB solutions and services worldwide. especially more than 80% printed circuit board are exported to oversea market. We have full of confidence to meet your quality level.
Check out this list of some of the high-quality PCB and PCB assembly services we offer:

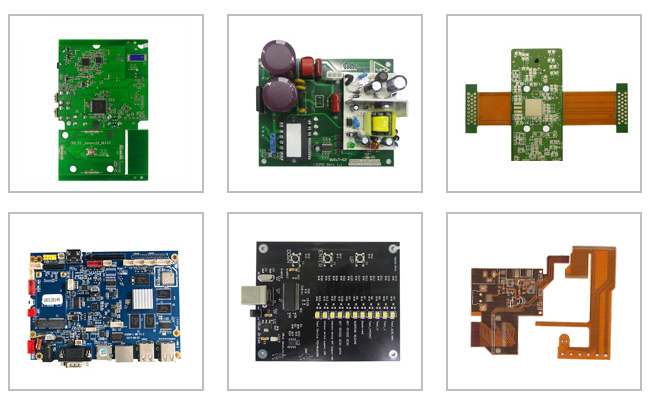

Bare PCB Manufacturing Type:
* Rigid PCB;
* Flexible PCB;
* Rigid-flex PCB;
* HDI PCB;
* Gold-Plated PCB;
* High Frequency PCBs;
* Aluminum PCB;
* Copper Base Circuit Board;
* High TG PCB;
* Heavy Copper PCB
* Customized
PCB Manufacturing and PCB Assembly Description:
| Article | Description | Capability |
| Laminate Materials | FR4, high TG FR4, high frequency, alum, FPC |
| Board Cutting | Number of layers | 1-48 |
Min.thickness for inner layers
(Cu thickness are excluded) | 0.003”(0.07mm) |
| Board Thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” |
| 4layer:0.01±0.008” |
| 8layer:0.01±0.008” |
| Bow and twist | no more than 7/1000 |
| Copper Weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) |
| PTH hole tolerance | ±0.002″(0.005mm) |
| NPTH hole tolerance | ±0.002″(0.005mm) |
| Solder Mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) |
| Thickness | (0.012*0.017mm) |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) |
| Component Sourcing | Yes |
| Tolerance of PCB | ±5% |
| Max Size of Finish Board | 700*460mm |
| MOQ | NO MOQ (1pcs) |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… |
| PCB Outline | Square,circle,irregular(with jigs) |
| Package | QFN,BGA,SSOP,PLCC,LGA |
| Sub-assembly | Plastic,metal,screen |
| Min Line/Space | 0.075/0.075mm |
Flexible Volume Assembly Alternatives:
* Prototype PCB Assembly:
See how well your PCB design works before generating a large order. Our quality prototype PCB assembly allows us to deliver a quick prototype, so you can identify any potential challenges in your design fast and optimize the quality of your final boards.
* Low-Volume, High Mix PCB Assembly:
If you require a number of different boards for specialized applications, FASTPCBA Is your best choice.
* High-Volume PCB Assembly:
We are equally as skilled at cranking out large PCB assembly orders as we are at delivering small ones.
* Consigned & Partial PCB Assembly:
Our consigned PCB assembly services meet IPC Class 3 standards, are ISO 9001:2015-certified, ISO 14001:2015-certifiedand are RoHS-compliant.
* Full Turnkey PCB Assembly:
Also ISO 9001:2015-certified, ISO 14001:2015-certifiedand are RoHS-compliant, our turnkey PCB assembly allows us to take care of your entire project from start to finish, so you can step in and start taking advantage of the finished product right away.
Factory Show:
We have imported the advanced machinery from US,Japan,German and Israel to improve our production and technical ability.We have set a great example the PCB field of flying probe testing,buried and blind via and special controlled impedance.We have a highly developed R&D division which has helped our factory successfully produce mechanical micro via,high density impedance and HDI. We have full of confidence to meet your quality level.
|
Automatic Printing Machine |
Damp Proof Box |
MYDATA Printing Machine |
|
Flextronics Ten Zone Reflow Machine |
DIP Automatic Spray Wave Soldering Machine |
MYDATA-MY200(MY100) High Speed Placement Machine |
|
Offline AOI Detector |
Online AOI Monitor |
Printing Machine |
|
Solder Paste Detector |
Ten Zone Reflow Machine |
X-RAY Detector |
FASTPCBA combines a flexible manufacturing environment – our floor layout and manufacturing lines, including our highly flexible surface mount technology (SMT) lines – and our ability to quickly changeover or adapt to the unique needs of our Printed Circuit Board Assembly customers.
Fushan has implemented ISO9001 certified processes from component procurement, over SMD pick and place, AOI and X-ray inspection, wave soldering, testing till system/product assembly. These processes, in combination with our experienced staff, allow us to produce high quality products for high mix / low volume as well as low mix / high volume product portfolios.
FAQ:
1, What service do you have?
We provide turnkey solution including PCB fabrication, SMT, plastic injection & metal,final assembly, testing and other value-added service.
2, What is needed for PCB & PCBA quotation?
For PCB: Quantity, Gerber file and technic requirements(material,size, surface finish treatment, copper thickness,board thickness).
For PCBA: PCB information, BOM,Testing documents.
3, How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.
4, What are the main products of your PCB/PCBA services?
Automotive, Medical, Industry Control, IOT, Smart Home, Military, Aerospace.
5, What is your minimum order quantity (MOQ)?
Our MOQ is 1 PCS, sample and mass production all can support.
6, Are you factory?
Our factory is located in 1st Building, No. 18-1, Yuquan East Road, Yulv Village, Gongming Street, Guangming New District shenzhen, china.
