OEM Prototype Double Sided Pcb Assembly Circuit Card Assembly Manufacturing

Product Categories
FASTPCBA Co., Ltd.
Contact Now

OEM Prototype Double Sided Pcb Assembly Circuit Card Assembly Manufacturing

  • 1
  • 2
  • 3

Brand Name : FASTPCBA

Model Number : Turnkey PCB Assembly

Certification : ISO13485, IATF16949, ISO9001,IOS14001

Place of Origin : China

MOQ : 1PCS

Price : Final price depends on actual order

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000pcs/month

Delivery Time : 1-25 work days

Packaging Details : 1.Inner: PCB: Vacuum Packing PCBA: ESD Packing 2.Outer: Standard export carton 3.Customized package.

Name : China PCBA Manufacturer

Keyword : PCB Assembly Soldering

Min. Hole Size : 0.004"

Min. Line Spacing : 0.003"

Copper Thickness : 0.25 oz -12 oz

Base Material : FR-4/aluminum/cem-3/FR-1

Board Thickness : 0.005"-0.250"

Min. Line Width : 0.003"

Surface Finishing : HASL /OSP/Soft Gold/Hard Gold

ROHS : CANEC1308721101

Process Characteristics : HDI Blind Buried Hole Process, High BGA Density, Small Hole-To-Line Spacing

Solder mask : Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue

Contact Now

Electronic Double Sided Prototype OEM PCBA Manufacturers



FASTPCBA is highly skilled at helping customers transition from consignment and turnkey system manufacturing that includes all components procurement and consulting service.



With over 20 years experience years in EMS field, we build-up a strong relationship with our supplier chain who have commited on our works and will to make our business successful together.

* 100% Brand New Parts from Reliable Source
* 100% IQC inspection
* Suppliers Chain Management & MRP System
* Rapid lead time
* Passive and Active components are available
* RoHS and SGS compliance



OEM Prototype Double Sided Pcb Assembly Circuit Card Assembly Manufacturing



What can FASTPCBA do?



1. PCB Manufacturing

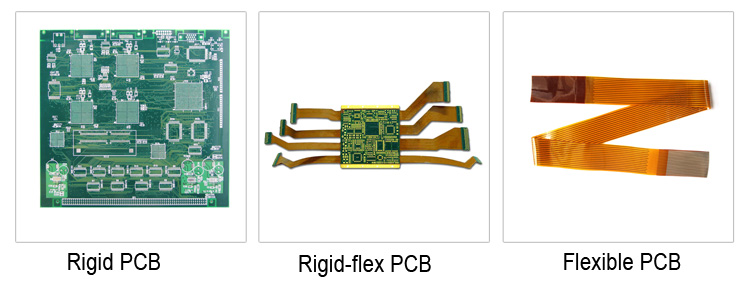

Offering: Rigid PCB; Flexible PCB; Rigid-flex PCB; HDI PCB; Gold-Plated PCB; High Frequency PCBs; Aluminum PCB; Copper Base Circuit Board; High TG PCB; Heavy Copper PCB......



Layers:

1-48 layers

Thicker Copper:

0.5-6OZ

Material:

FR4(Shengyi China,ITEQ,KB A+,HZ),HI-TG, FR06,Rogers,

Taconic,Argon,Nalco,Isola and so on

Solder Mask:

green, yellow,white, blue,black,red

Finished Surface:

conventional hasl, lead free hasl, immersion gold, immersion tin,
immersion silver, hard gold, OSP...

Silkscreen color:

white

Products Type:

HF(High-Frequency)&(Radio Frenquency)board,

impendance controlled board, HDI board,BGA&Fine pitch board

Minimum line width/gap:

3.5/4mil(laser drill)

Minimum hole size:

0.15mm(mechanical drill)/4mil(laser drill)

Minimum Annlar Ring:

4mil

Max Copper thickness:

6OZ

Min Solder Mask Bridge:

0.08mm

Plugging Vias capability:

0.2-0.8mm



OEM Prototype Double Sided Pcb Assembly Circuit Card Assembly Manufacturing

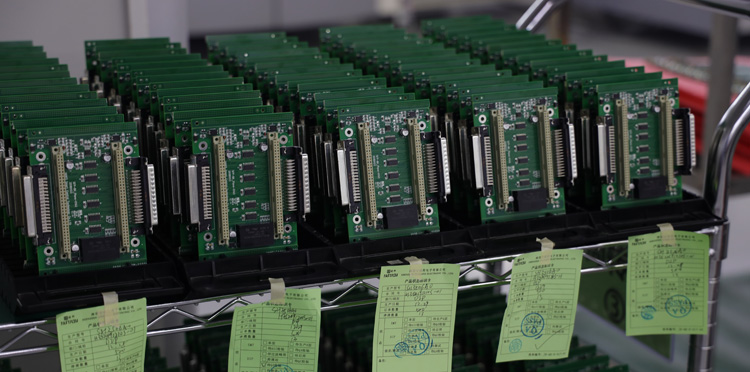

2. PCB Assembly



Printed Circuit Board Assembly (PCBA) is one of our core services FASTPCBA. We provide our customers with PCB solutions and services worldwide. especially more than 80% printed circuit board are exported to oversea market. We have full of confidence to meet your quality level.



OEM Prototype Double Sided Pcb Assembly Circuit Card Assembly Manufacturing

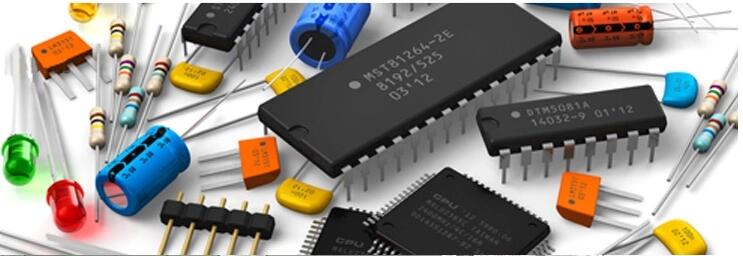

3. Parts Sourcing



Our team of Sourcing and Procurement specialists are able to speed through the process of finding the right comp-onents, ordering them and tracking their arrival. Then our Inventory specialists scour the arriving parts to ensure the correct quantity and parts are received—setting the job to move seamlessly through our Production and Quality de-partments before shipping out.

We can source some or all of your parts through our network of trusted distributors.



OEM Prototype Double Sided Pcb Assembly Circuit Card Assembly Manufacturing

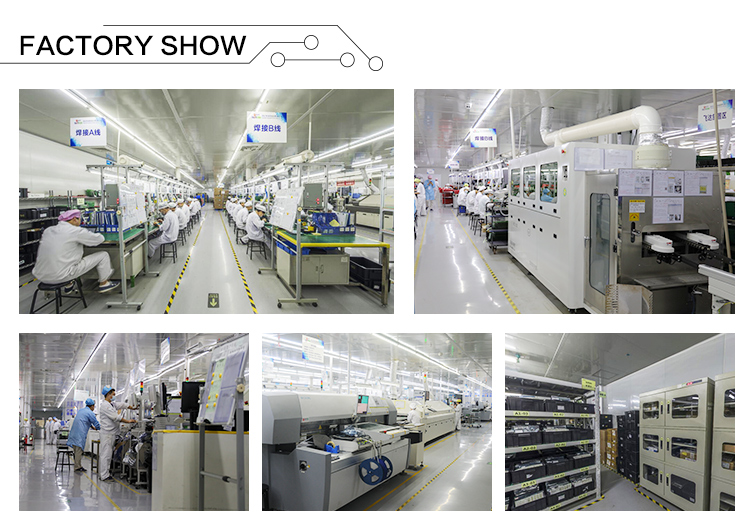

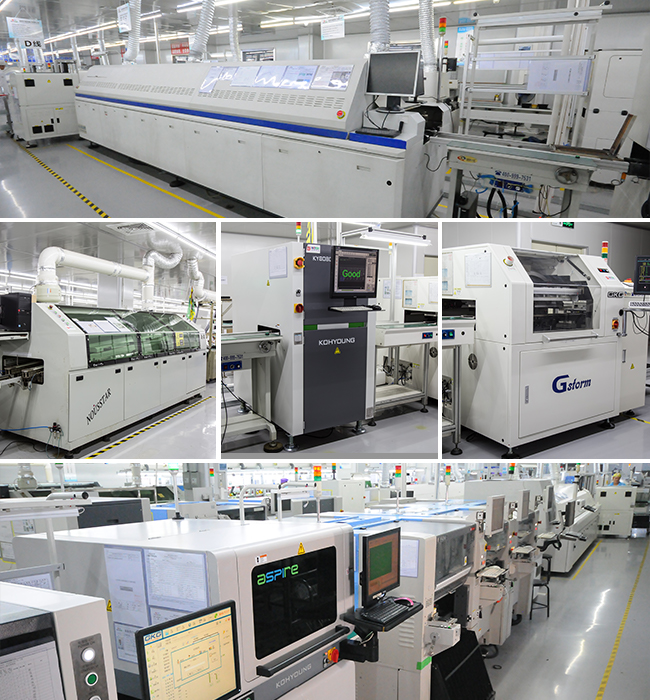

Advanced PCB Manufacturing and Assembly Equipment

We have imported the advanced machinery from US,Japan,German and Israel to improve our production and technical ability.We have set a great example the PCB field of flying probe testing,buried and blind via and special controlled impedance.We have a highly developed R&D division which has helped our factory successfully produce mechanical micro via,high density impedance and HDI.



OEM Prototype Double Sided Pcb Assembly Circuit Card Assembly Manufacturing





1, What service do you have?
We provide turnkey solution including PCB fabrication, SMT, plastic injection & metal,final assembly, testing and other value-added service.



2, What is needed for PCB & PCBA quotation?
For PCB: Quantity, Gerber file and technic requirements(material,size, surface finish treatment, copper thickness,board thickness).
For PCBA: PCB information, BOM,Testing documents.



3, How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.



4, What are the main products of your PCB/PCBA services?
Automotive, Medical, Industry Control, IOT, Smart Home, Military, Aerospace.



5, What is your minimum order quantity (MOQ)?
Our MOQ is 1 PCS, sample and mass production all can support.



6, Are you factory?
Our factory is located in 1st Building, No. 18-1, Yuquan East Road, Yulv Village, Gongming Street, Guangming New District shenzhen, china.





We are waiting for your response to move forward next step and offer you wanted information, product and service.


Please kindly do me a favor: Fill out the form below, tell me your needs, it is beneficial for both of us.
