Smt Circuit Board Turnkey Automated PCB Assembly Electronic Assembly Fabrication

Name: Smt Circuit Board Turnkey Automated PCB Assembly Electronic Assembly Fabrication
Brand: FASTPCBA
Price: 0.1 USD

Buy cheap Smt Circuit Board Turnkey Automated PCB Assembly Electronic Assembly Fabrication product

Brand Name : FASTPCBA

Model Number : Pcb Assembly Contract Manufacturer

Certification : ISO13485, IATF16949, ISO9001

Place of Origin : China

MOQ : 1PCS

Price : USD 0.1-3/ pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000pcs/month

Packaging Details : 1.Inner: PCB: Vacuum Packing PCBA: ESD Packing 2.Outer: Standard export carton 3.Customized package.

Service : One-stop PCB and SMT Assembly

Layer Count : 1-48

MOQ : No MOQ

PCBA Test : X-ray,AOI Test,Functional test

Solder mask color : Yellow,green,blue,white,black

Max size of finish board : 700*460mm

Contact Now

Pcb Assembly Contract Manufacturer Ems Electronic Manufacturing Services

ASTPCBA focus on muti-varieties and small batch quick turn pcb prototype over 20 years, with no MOQ, no need to open stencil, fastest pcb delivery in 4hs.

FASTPCBA insist on taking high quality pcb assembly route, we can flexiblely service for small batch pcb prototype, middle batch pcb manufacturing, mass pcb assembly for customers of automotive, medical, industrial control, military, smart home, power communication and aerospace with ISO9001, ISO13485, ISO14000 and IATF16949 certificates.

With ERP online control, complete quality management, advanced pcb printing & assembly devices, professional engineer team, we are confident to provide best quality and precise pcb assembly solutions.

Article	Description	Capability
Material	Laminate materials	FR4, High TG FR4, High Frequency, Alum, FPC...
Board Cutting	Number of layers	1-48
Board Cutting	Min.thickness for inner layers (Cu thickness are excluded)	0.003”(0.07mm)
Board Thickness	Standard	(0.1-4mm±10%)
	Min.	Single/Double:0.008±0.004”
		4 layer:0.01±0.008”
		8layer:0.01±0.008”
	Bow and twist	no more than 7/1000
Copper Weight	Outer Cu weight	0.5-4 0z
Copper Weight	Inner Cu weight	0.5-3 0z
Drilling	Min size	0.0078”(0.2mm)
	Drill deviation	±0.002″(0.05mm)
	PTH hole tolerance	±0.002″(0.005mm)
	NPTH hole tolerance	±0.002″(0.005mm)
Solder Mask	Color	Green,white,black,red,blue…
	Min solder mask clearanace	0.003″(0.07mm)
	Thickness	(0.012*0.017mm)
Silkscreen	Color	white,black,yellow,blue…
Silkscreen	Min size	0.006″(0.15mm)
Max Size of Finish Board	700*460mm
Surface Finish	HASL,ENIG,immersion silver,immersion tin,OSP…
PCB Outline	Square,circle,irregular(with jigs)
Package	QFN,BGA,SSOP,PLCC,LGA

Delivery Time for PCB

Layer	Prototype		Mass Productions (above 30 m2 )
Layer	Quick Turn	Unual Time	Mass Productions (above 30 m2 )
2	24 hours	3-4 days	8-10 days
4	48 hours	5-6 days	10-12 days
6	72 hours	6-8 days	12-14 days
8	96 hours	8-10 days	14-16 days
10	120 hours	12-14 days	16-18 days
...	...	...	...

Delivery Time for PCBA

Order Conditions	Standard Delivery Date	The fastest Delivery Date
Prototype (<20 pcs)	2 days	8 hours
Small Volum (20-100 pcs)	3 days	12 hours
Medium Volum(100-1000 pcs)	6 days	24 hours
Mass productions (>1000 pcs)	Depends on BOM	Depends on BOM

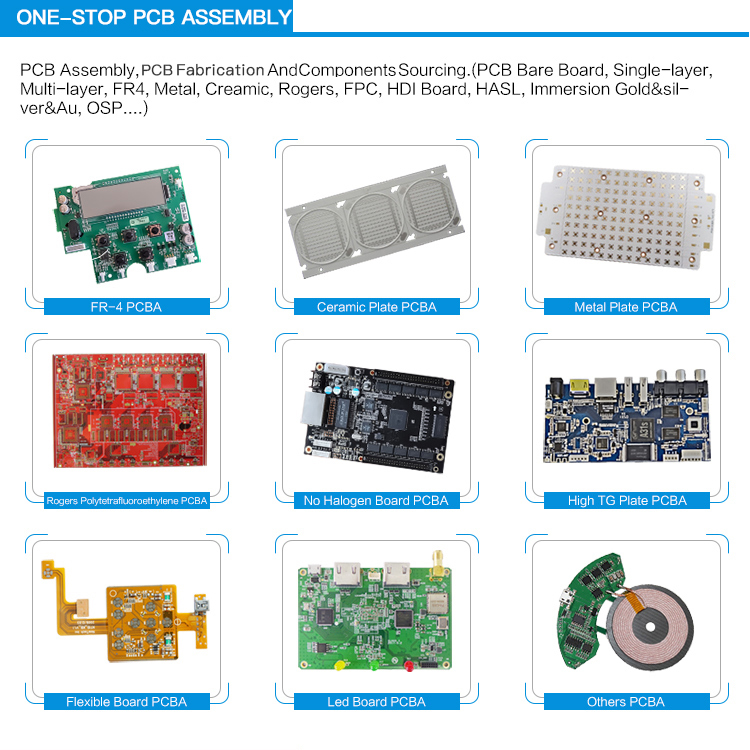

Smt Circuit Board Turnkey Automated PCB Assembly Electronic Assembly Fabrication

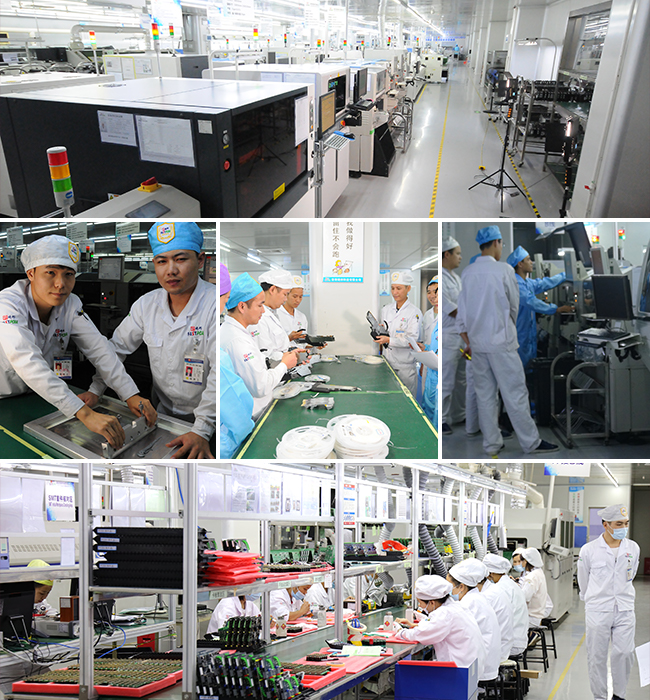

Small batch turnkey pcb assembly factory, smart home/ automotive/ medical/industry/ military/ communication/ aerospace customers prefer to cooperate with FASTPCBA over decades.

Smt Circuit Board Turnkey Automated PCB Assembly Electronic Assembly Fabrication
